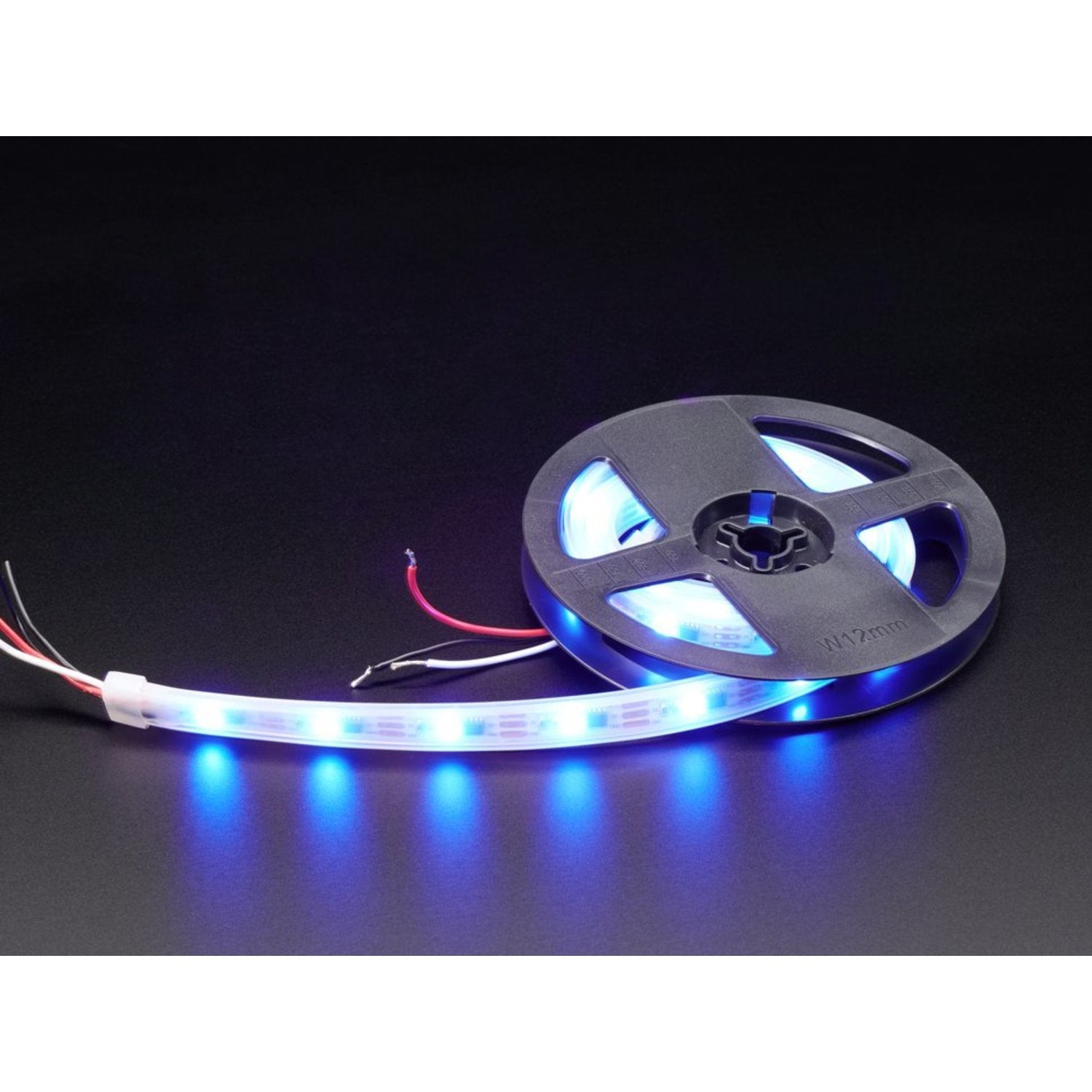

Adafruit NeoPixel UV LED Strip with 32 LED/m – White PCB – 1M Clearance Get To Buy

Original price was: $31.21.Current price is: $17.00.

What new iteration of NeoPixel strip is this? Roll out the black light and disco ball! It’s an Adafruit NeoPixel Ultraviolet Strip with 32 LEDs per meter! Each order comes as a single one meter long strip. If you order multiple meters, you’ll get that many innavidual 1 meter pieces.

The strip is made of flexible PCB material, and comes with a weatherproof sheathing. You can cut this stuff pretty easily with wire cutters. There are cut-lines every 3cm (1 LED each). Solder to the 0.1″ copper pads, and you’re good to go. We have a 5V/2A supply that should be able to drive 1 or more meters (depending on use) and a 5V/10A supply that can drive 5 meters (or more, if you are not lighting up all the LEDs at once) You must use a 5V DC power supply to power these strips; do not use higher than 6V, or you will destroy the entire strip. Yikes!

Comes with a 2-pin JST SM connector on each end.

To wire up these strips we suggest picking up some JST SM plug and receptacle cables. Please note, we try hard to get consistent wiring between batch of strip but we can’t guarantee it. Please double check which side is the input and which is the output by looking at the strip for the directional arrows and pin labeling.

You can use these with any ‘NeoPixel’ or WS2812 driver (FastLED, etc). The R, G and B channels translate to the three innavidual UV diodes. So we recommend you pretty much just set all three channels to the same value, ranging from (0, 0, 0) to (255, 255, 255) to change the brightness of the three UV LEDs inside each 5mm x 5mm package.
