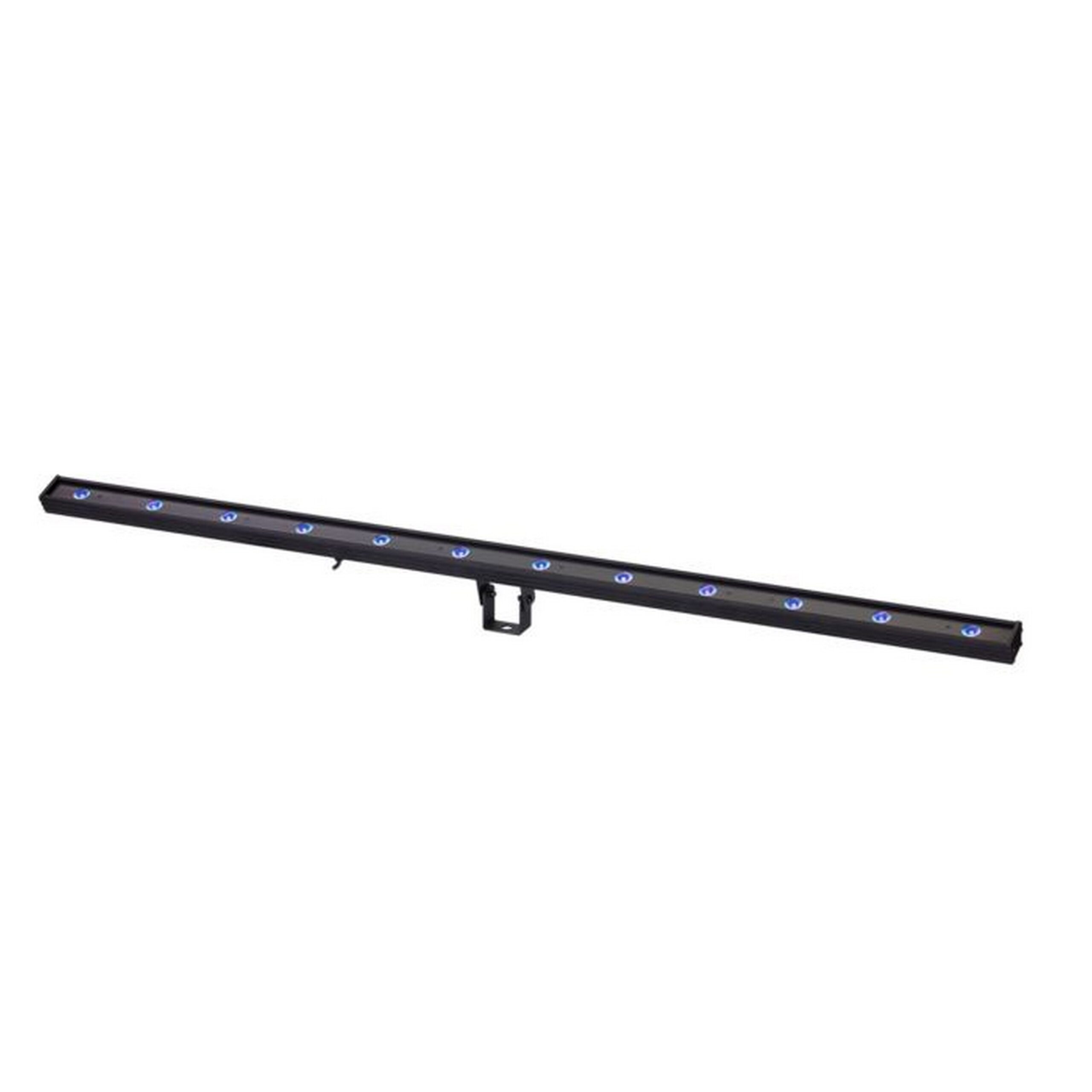

Antari DarkFX Strip 1020 UV LED Bar
The Antari DarkFX Strip 1020 is an efficient high output low power consumption UV LED bar that delivers a peak wavelength of 365nm and radiant flux output of 9000+mW at full intensity with minimum visible light. This ensures all UV reactive materials, art, amusement park displays, and signage reflects perfectly with stunning bright and vivid colors. It features (12) 1.9W high power UV LEDs, a 40-degree beam angle, special optics to prevent wear degradation from high UV exposure, flicker free operation for TV and FILM, an IP20 rated (indoor use only) aluminum extruded housing, an adjustable mounting bracket, and comes with a 22AWG power/data bare wire end pigtail cable attached on the back which connects to the Antari DarkFX Drive 4 fixture driver (sold separately) which is required for power and DMX control.
Key Features
- High Efficiency UV LED Bar
- 40-Degree Beam Angle
- 365nm Peak Wavelength with Minimum Visible Light
- 9000+mW High Output at Full Intensity
- Special Optics to Prevent Wear Degradation from High UV Exposure
- Flicker Free Operation for TV and FILM
Technical Specifications
SOURCE
(12) 1.9W High Power UV LEDs
20,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
Optics: 40 Degrees
Peak Wavelength: 365nm
Radiant Flux Output: 9000+ mW
CONTROL / CONNECTIONS
DarkFX Drive 4 II Power/DMX Fixture Driver (sold separately)
Cable Connection: Bare Wire Power/Data Combo Cable
SIZE / WEIGHT
Dimensions (no mounting brackets)
Length: 47″ (1194mm)
Width: 2″ (51mm)
Vertical Height: 2″ (51mm)
Dimensions (including mounting brackets)
Length: 47″ (1194mm)
Width: 3″ (76.2mm)
Vertical Height: 2.5″ (64mm)
Dry Weight: 5lbs / 2.3kg
ELECTRICAL / THERMAL
DC 20-24V
Max Power Consumption: 24 Watts
APPROVALS / RATINGS
CE | IP20 Indoor Use Only
