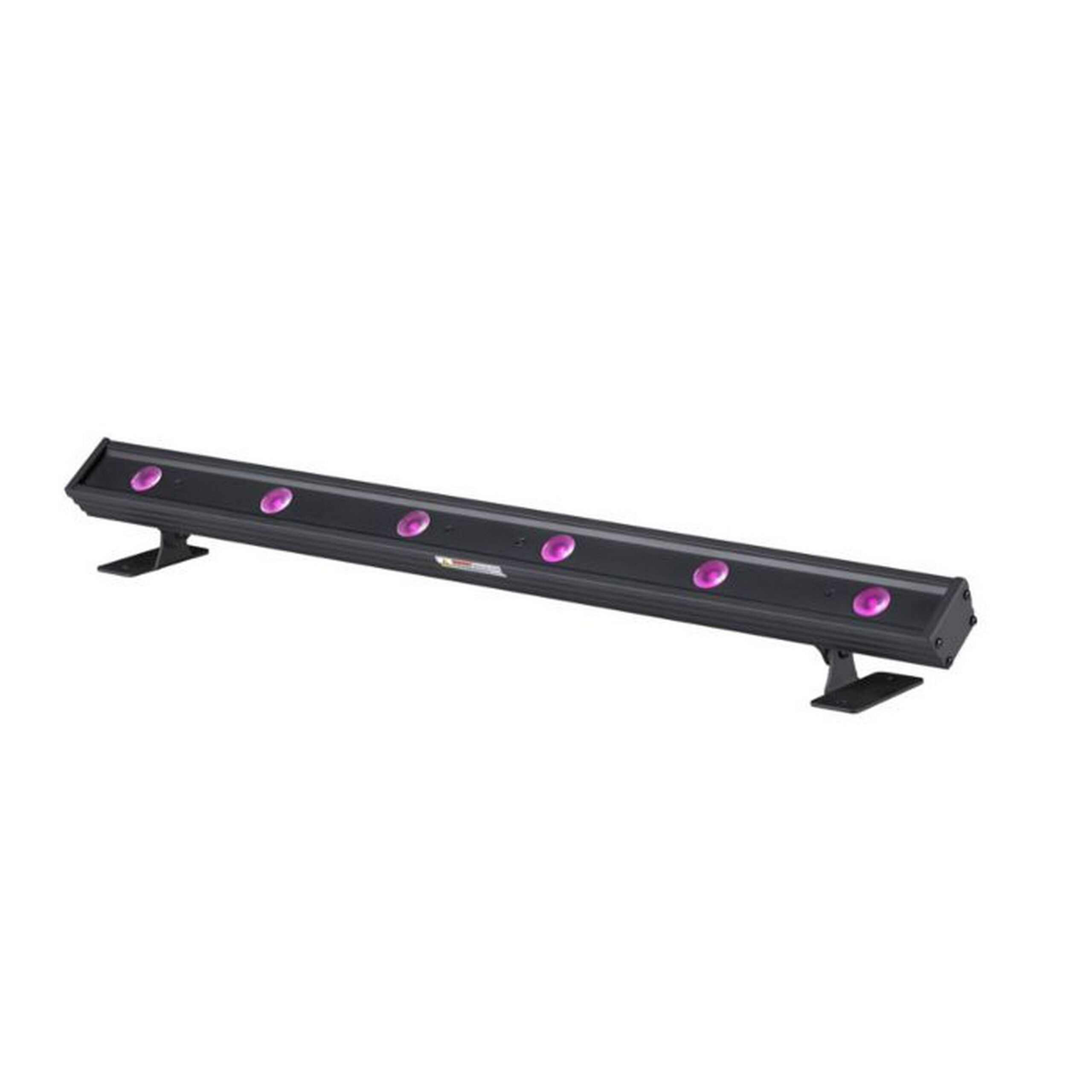

Antari DarkFX Strip 510 High Efficiency UV LED Bar with 25-Degree Beam Angle

The Antari DarkFX Strip 510 is an efficient high output low power consumption UV LED bar that delivers a peak wavelength of 365nm and radiant flux output of 4500mW at full intensity with minimum visible light. This ensures all UV reactive materials, art, amusement park displays, and signage reflects perfectly with stunning bright and vivid colors.

Key Features

• High Efficiency UV LED Bar
• 25-Degree Beam Angle
• 365nm Peak Wavelength with Minimum Visible Light
• 4500mW High Output at Full Intensity
• Special Optics to Prevent Wear Degradation from High UV Exposure
• Flicker Free Operation for TV and FILM

Technical Specifications

SOURCE
(6) 1.9W High Power UV LEDs
20,000 Hour Average LED Life*
PHOTOMETRIC DATA
Optics
25 Degrees
Peak Wavelength
365nm
Radiant Flux Output
4500 mW
CONTROL/CONNECTIONS
DarkFX Drive 4 Power/DMX Fixture Driver (sold separately)
Cable Connection
22 AWG Bare Wire Power/Data Combo Cable
SIZE / WEIGHT
Dimensions (no mounting brackets)
Length
23.4” (593.2mm)
Width
1.78” (45mm)
Vertical Height
1.15” (29.15mm)
Dimensions (including mounting brackets)
Length
23.4” (593.2mm)
Width
2.91” (74mm)
Vertical Height
2.85” (72.35mm)
Dry Weight
2.4 lbs. (1.08 kg)
ELECTRICAL / THERMAL
DC 20-24V
12W Max Power Consumption
APPROVALS / RATINGS
CE | IP20 Indoor Use Only
