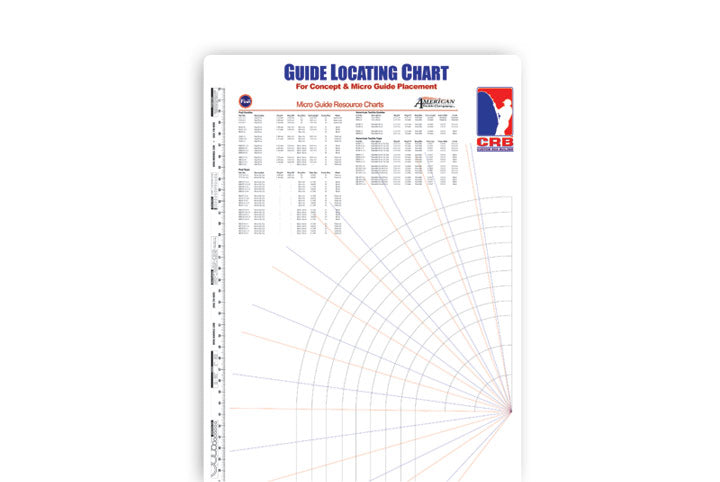

Guide Locating Chart for Concept & Micro Guides Cheap Amazon

This guide has been designed to aid you in proper placement of Micro and Concept® guides. It utilizes angle to the tangent of the blank curve to achieve this.

Unlike other guide placement tools this will take into consideration the action of your blank to properly place guides in the range that your blank flexes the most and requires more support.

While this tool was designed for placement of Micros and Concept-style guides it distributes the guides on virtually any blank to achieve higher performance and greater protection.
