IC Realtime IVB-201C-V2 Single-Channel Coaxial Video Transceiver Quality Original

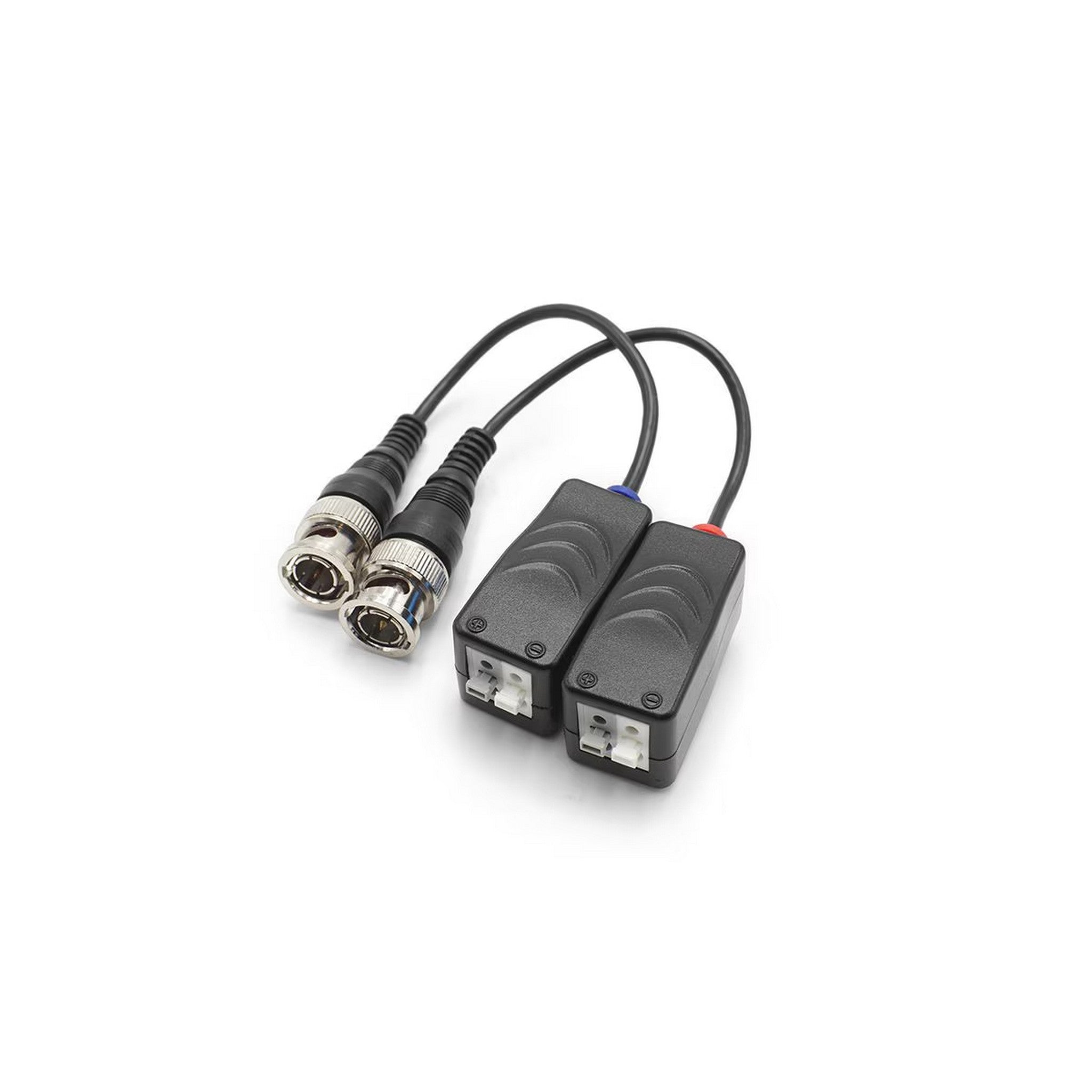

IC Realtime IVB-201C-V2 Coaxial Video Transceiver

The IC Realtime IVB-201C-V2 Coaxial Video Transceiver is a high-performance solution designed for long-distance video transmission. With its advanced technology, it supports various formats including HD-AVS, TVI, AHD, and CVBS, ensuring versatility and compatibility for different surveillance needs. This transceiver delivers crisp and clear video with resolutions up to 4K, making it ideal for high-definition security systems. Constructed with durable ABS shell, it withstands harsh environmental conditions, including extreme temperatures ranging from -30°C to +70°C (-22°F to +158°F). Additionally, the compact design allows for easy installation in tight spaces while maintaining robust performance.

Featuring a coaxial video connector BNC-M and RJ45 connection, the IC Realtime IVB-201C-V2 ensures a secure and stable connection. The device also supports a wide range of transmission distances, with up to 400 meters for HD-AVS 720P, 250 meters for 1080P, and 180 meters for 4MP/4K resolutions. The video transmission properties guarantee reliable data transfer over extended distances without loss of quality. Its lightweight design, weighing only 40 grams (0.09 lbs), adds to its ease of use and handling.

The IC Realtime IVB-201C-V2 is built to meet industry standards, with protection against ESD (Electrostatic Discharge) and optimized impedance levels (BNC Male Impedance 75 ohms, UTP Cable Impedance 100 ohms). Additionally, it supports various safety measures, including a 2KV different-mode and 4KV common-mode protection per IEC61000-4-5 standards.

Key Features

• Coaxial Video Connector: BNC-M
• Connection: RJ45
• Compatible Format: HD-AVS/TVI/AHD/CVBS
• Resolution: 720P/1080P/4MP/5MP/4K
• Transmission Signal: 1-CH
• Network Cable Type: UTP CAT5E/6 (Material: CU)

Technical Specifications

• Transmission Properties:
• HD AVS 720P: Max. 400m (1312.34ft)
• HD AVS 1080P: Max. 250m (820.21ft)
• HD AVS 4MP/4K: Max. 180m (590.55ft)
• TVI 720P: Max. 250m (820.21ft)
• TVI 1080P: Max. 250m (820.21ft)
• TVI 4MP/4K: Max. 180m (590.55ft)
• AHD 720P: Max. 400m (1312.34ft)
• AHD 1080P: Max. 250m (820.21ft)
• AHD 4MP/4K: Max. 180m (590.55ft)
• Weight: 40g (0.09lbs) (1 pair)
• Dimension (LxWxH): 173.8mm x 19.5mm x 21mm (6.84” x 0.77” x 0.83”)
• Shell: ABS
• Color: Black
• Operating Temperature: -30°C~+70°C (-22°F~+158°F)
• Operating Humidity: <95% RH
• Storage Temperature: -40°C~+80°C (-40°F~+176°F)
• Protection:
• BNC Male Impedance: 75 ohms
• UTP Cable Impedance: 100 ohms
• ESD Protection
• 1a contact discharge electricity level 3
• 1b air discharge electricity level 3
• Per: IEC61000-4-2
• UTP Cable Connector:
• 2KV (different-mode)
• 4KV (common-mode)
• Per: IEC61000-4-5

What’s Included

• IC Realtime IVB-201C-V2 Coaxial Video Transceiver
• Documentation
