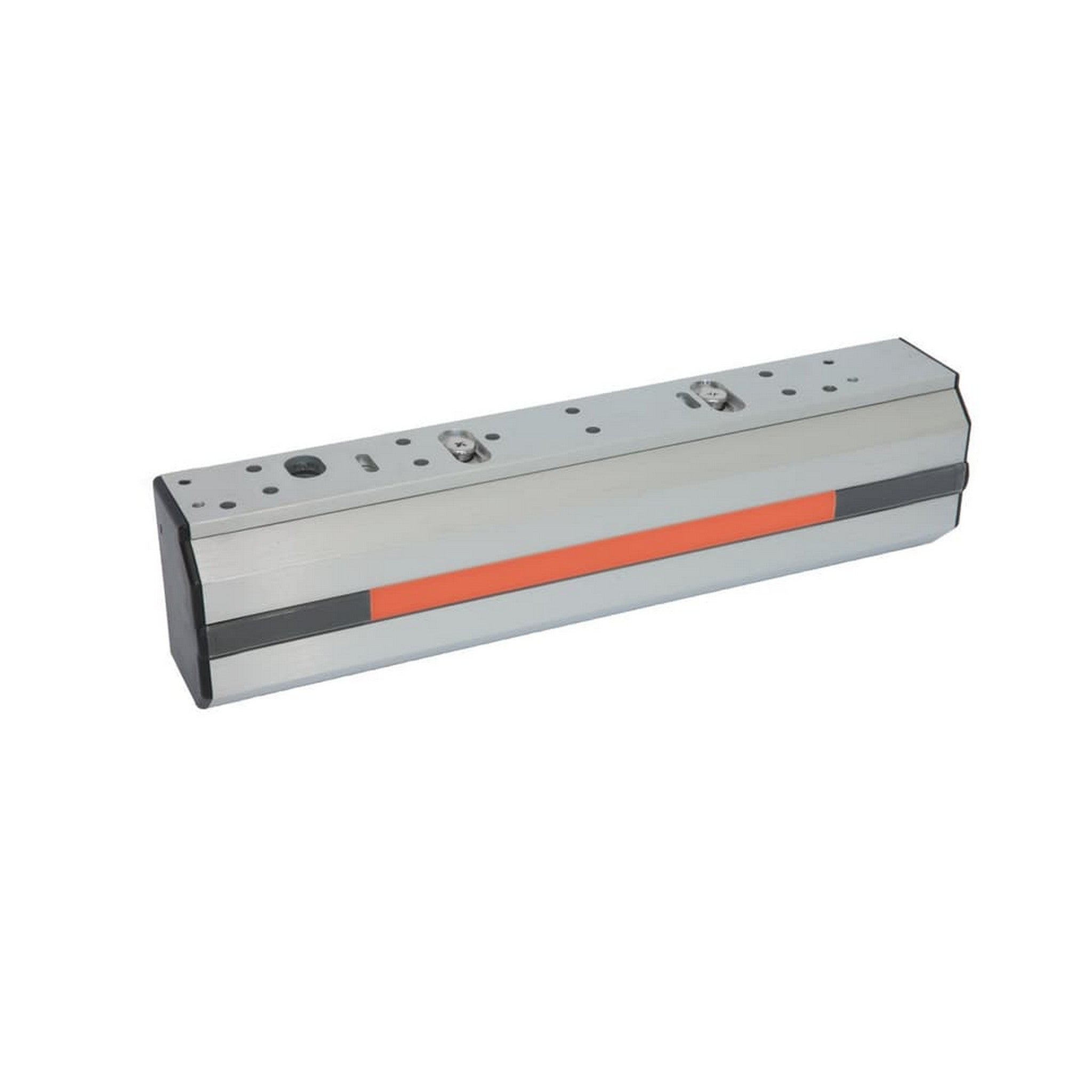

RCI DE8310 Delayed Egress Lock

The RCI DE8310 Delayed Egress Lock is a state-of-the-art security solution designed to provide enhanced safety while ensuring compliance with building codes. This innovative locking system is specifically engineered to prevent unauthorized exits in high-security areas, making it an ideal choice for various applications, including schools, hospitals, and commercial buildings. The DE8310 is equipped with a time-delay feature that allows for a brief exit delay, providing enough time for security personnel to respond to potential threats while maintaining a safe environment for occupants.

With its robust construction and advanced technology, the RCI DE8310 Delayed Egress Lock offers reliable performance and durability. The lock is designed to be easily integrated into existing security systems, making it a versatile addition to any access control setup. Its sleek design not only enhances security but also complements modern architectural aesthetics. The DE8310 is built to withstand the rigors of daily use, ensuring long-term reliability in demanding environments.

In addition to its impressive functionality, the RCI DE8310 Delayed Egress Lock is user-friendly, featuring straightforward installation and maintenance processes. The lock’s customizable time delay settings allow operators to tailor the response time to fit specific security needs, ensuring optimal protection. This combination of adaptability, reliability, and performance makes the RCI DE8310 an exceptional choice for those seeking a sophisticated locking solution that prioritizes safety and security.

Key Features

• Time-delay mechanism for enhanced security
• Robust design suitable for high-traffic areas
• Easy integration with existing security systems
• Customizable exit delay settings
• Durable construction for long-lasting performance
• Fail-safe mode for added safety
• Local and remote monitoring options
• Optional built-in sounder for alerts

Technical Specifications

Model
DE8310
Dimensions
10-13/16″W x 2-7/8″H x 2-1/8″D (275mm x 73mm x 54mm)
Mounting Bracket
1/4″ (6mm)
Energy
490mA Auto-Sensing 12-24VDC (Base unit, max at 12VDC)
Strength
Up to 1,200lbf Holding Force
Warranty
5 Year Limited Warranty
Mode
Fail-Safe
Fire-Rated
CAN/ULC S104 UL 10C 1-1/2-Hour
Monitoring
Local & Remote Relay Outputs & Optional Built-In Sounder
Compliance
IBC, SBC, NFPA101, UBC, BOCA, NBC of Canada
Features
Overcomes residual magnetism, Hardened steel armature nut, 5/8″ (16mm) armature plate
Fasteners
Self-drilling Teks® fasteners
Finish
Brushed Anodized Aluminum (28)
Synchronization
Up to 4 doors (converter required)
Special Approvals
AHJ approval for custom applications
UL Listings
UL 294, ULCS533, CAN/ULC S104, UL 10C
Patent #’s
US 8,292,337 Canada 2,632,243

Model
DE8310S
Dimensions
11-3/4″W x 2-7/8″H x 2-1/8″D (299mm x 73mm x 54mm)
Mounting Bracket
1/4″ (6mm)
Armature Plate
7-7/16″W x 2-3/8″H x 5/8″D (190mm x 61mm x 16mm)
Energy
490mA Auto-Sensing 12-24VDC (Base unit, max at 12VDC)
Strength
Up to 1,200lbf Holding Force
Warranty
5 Year Limited Warranty
Mode
Fail-Safe
Fire-Rated
CAN/ULC S104 UL 10C 1-1/2-Hour
Monitoring
Local & Remote Relay Outputs & Optional Built-In Sounder
Compliance
IBC, SBC, NFPA101, UBC, BOCA, NBC of Canada
Features
Overcomes residual magnetism, Hardened steel armature nut, 5/8″ (16mm) armature plate
Fasteners
Self-drilling Teks® fasteners
Finish
Brushed Anodized Aluminum (28)
Synchronization
Up to 4 doors (converter required)
Special Approvals
AHJ approval for custom applications
UL Listings
UL 294, ULCS533, CAN/ULC S104, UL 10C
Patent #’s
US 8,292,337 Canada 2,632,243
